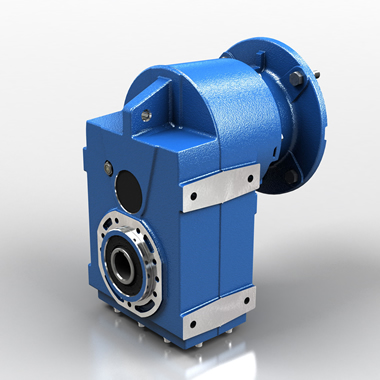

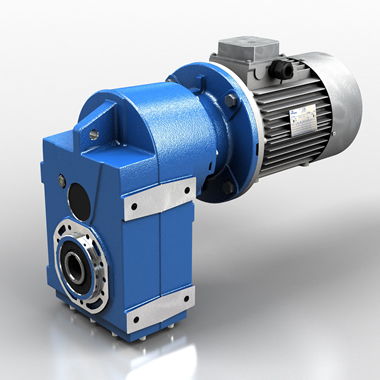

S系列平行轴齿轮减速机
产品特性：
型号: 050-060-080-100-125-140-150
- Power from 0,12 kW up to 45 kW with three phase 4 pole motors
- Reduction ratios between 4,06 and 394,69
- Torque max 9.500 Nm
- Admissible radial loads max 30.000 N
型号: 050-060-080-100-125
- Universal casing
- Versions: S... C Foot-flange mounting / Hollow shaf - S... D Foot-flange mounting / Solid shaft - S... L Foot-flange mounting / Shrink disc shaft
- Gearing with 2 and 3 reduction stages
- Modularity
- Gears hardened and tempered with shaved or ground profile
- Cases in EN-GJL-200 grey cast iron for high strength and optimized with FEM analysis
- Excellent mechanical strength
- Load capacity calculated to ISO 6336, DIN 3990 and AGMA 2001
- Painted with RAL 5010 blue epoxy-polyester powder
型号: 140-150
- Universal casing
- Versions: S... C Foot-flange mounting / Hollow shaft, S... L Foot-flange mounting / Shrink disc shaft
- Gearing with 2 and 3 reduction stages
- Gears hardened and tempered with ground profile
- Cases in EN-GJL-200 grey cast iron
- Load capacity calculated to ISO 6336, DIN 3990 and AGMA 2001
- Gearboxes supplied without lubricant
- Painted with RAL 5010 blue epoxy-polyester powder
特别为传送带或传送器设计, 这个系列同样适用于广泛多样的工业领域
S 系列轴装齿轮减速器提供铸铁型号，可选规格 050 至 125，减速比范围宽，确保在所有操作条件下具有最大效率。
摩铎利 S 系列推出了两个新尺寸机型 - 140 和 150，可拓宽高功率螺旋伞齿轮减速机的安装范围。
提供认证 (高达大小 125)：ATEX 2GD/3GD
质量保证：自交付之日起两年。
